Williams Farm Solar Hot Water Live Data Web Energy Logger Graphs

Williams Farm Solar Hot Water Live Data Updated Every 5 Minutes

100% SOLAR HEATED DOMESTIC HOT WATER
FROM MAY TO NOVEMBER IN GEORGETOWN, MAINE
OUR TOTALLY SOLAR POWERED SYSTEM PRODUCED 6,687,239 BTU's
AND HEATED 11,450 GALLONS OF DOMESTIC HOT WATER FROM 50F to 120F

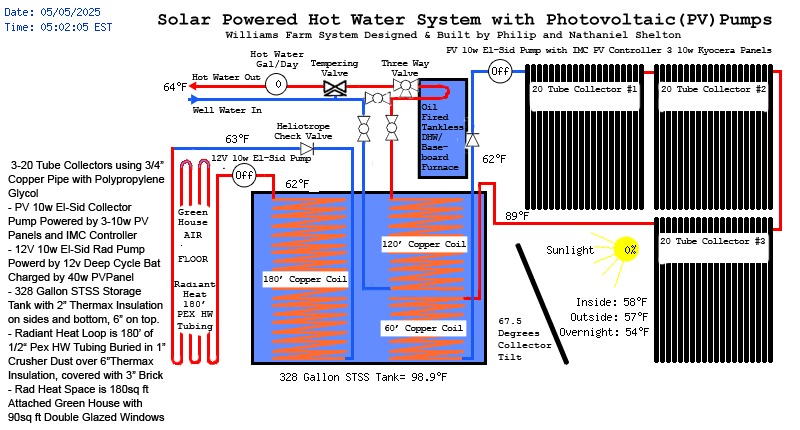

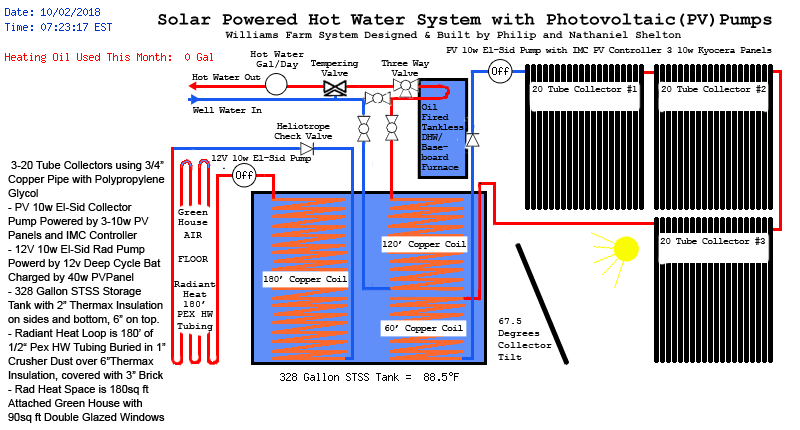

Closed Loop Solar Hot Water System Diagram with Plumbing Layout with Live Data
ABOVE DIAGRAM SHOWS OUR SYSTEM LAYOUT WITH LIVE DATA

Daily Solar Hot Water Collector Output Chart
PAST 24 HOURS COLLECTOR SYSTEM AND ENVIRONMENTAL DATA

24 Hour Domestic Hot Water Usage Chart
PAST 24 HOURS OIL FURNACE HOT WATER SYSTEM DATA

Daily Radiant Floor Temperature Chart
PAST 24 HOURS RADIANT HEAT SYSTEM AND OUTSIDE TEMPERATURE DATA

Daily DHW Usage in Gallons Chart
PAST 30 DAYS GALLONS OF DOMESTIC HOT WATER USED PER DAY

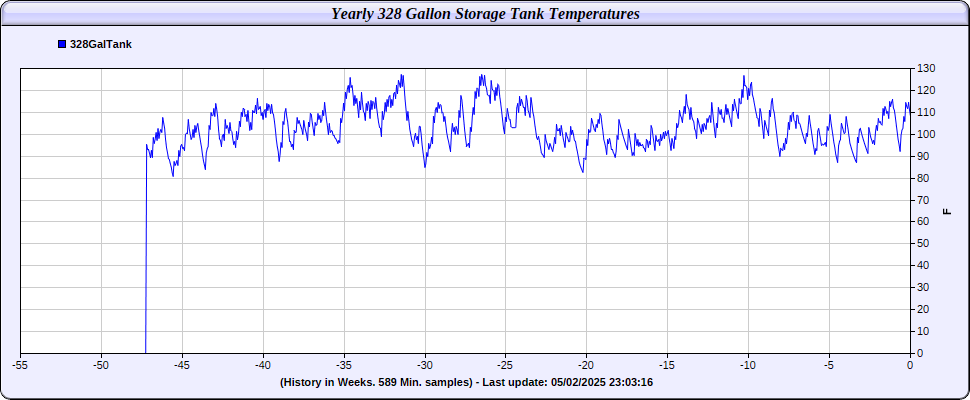

Yearly Solar Hot Water Storage Tank Temperatures Chart
